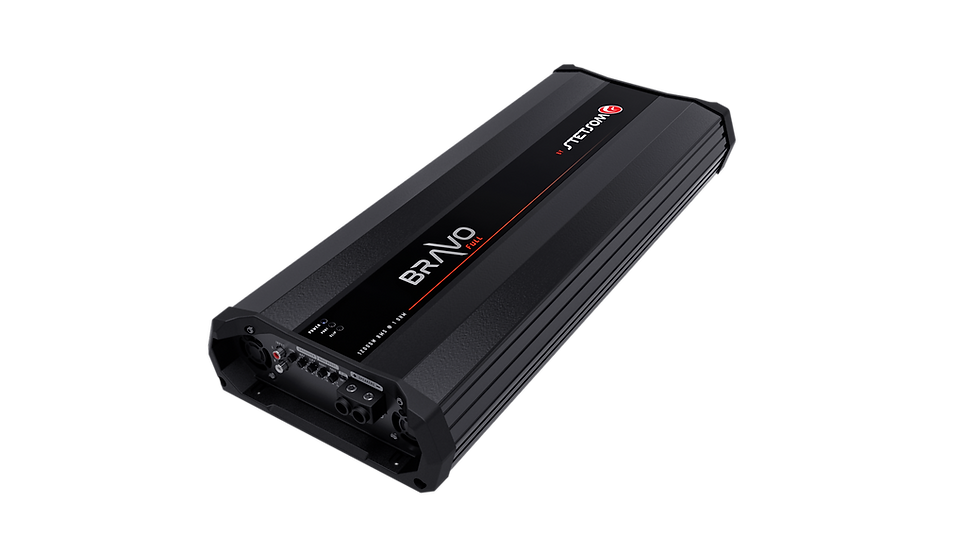

The BRAVO FULL line was developed for car audio enthusiasts seeking maximum performance and quality in FULL-RANGE amplifiers.
Its frequency response of 5Hz to 7kHz offers audio quality and definition, allowing it to be used with subwoofers, woofers, drivers, and tweeters.
TECHNICAL SPECIFICATIONS
CHARACTERISTICS | BRAVO FULL 12000 – 1 OHM |
Number of Channels | 1 |
RMS Power | 12.000W |
RMS Power at 1 Ohm 12.6V | 12.000W |
RMS Power at 2 Ohm 12.6V | 7.120W |
RMS Power at 1 Ohm 14.4V | 12.800W |
RMS Power at 2 Ohm 14.4V | 8.510W |
Supply Voltage | 9V ~ 16V DC |
Frequency Response | 5Hz ~ 7KHz @ 1 Ohm |
Crossover Low Pass | 90Hz ~ 7KHz |
Crossover High Pass | 5Hz ~ 90Hz |
Signal to Noise | >90dB |
Input Sensitivity | 200mV |
Input Impedance | 19K Ohms |
Impedance Output | 1 OHM |
Consumption with Signal Musical | 590A |
Consumption with Signal Bass | 1180A |
Dimensions (H x W x D) mm | 79,7 x 574 x 231,5 mm |
Weight Kg | 8,6 Kg |
